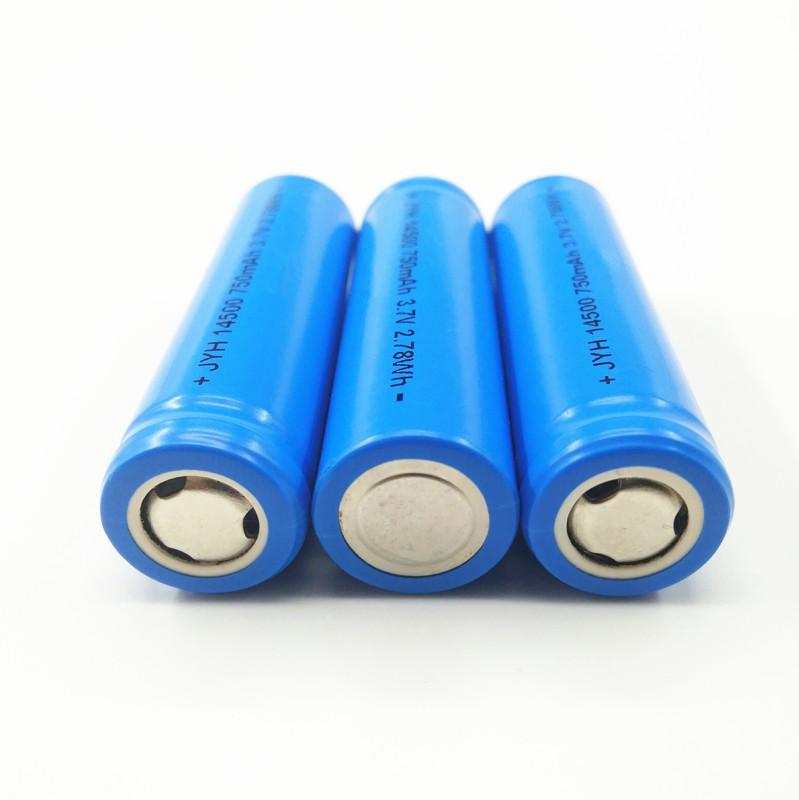

Flat top 14500 lithium battery
Specification
| Nominal Voltage |
3.7V |
| Nominal Capacity |
750mAh |
| Typical Capacity |
770mAh after standard charge and standard discharge |
| Standard Charge |
Constant current at 375mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 8mA |
| Fast Charge |
Constant current at 750mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 8mA |
| Standard Discharge |
150mA to 2.75V |
| Fast Discharge |
750mA to 2.75V |
| Maximum Continuous Charge Current |
750mA |
| Maximum Continuous Discharge Current |
1500mA |
| Operating Temperature |
Charge 0°C to 45°C
Discharge -20°C to 60°C |
| Dimensions |
Diameter 14.5mm
Height 49.0mm |
| Typical Weight |
20g |
Products advantage
1, Real capacity
2, Cycle life more than 400 times
3, Rechargeable
4, UL test pass
Application
1, Electric shaver
2, Toothbrush
3, Other personal care products
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
