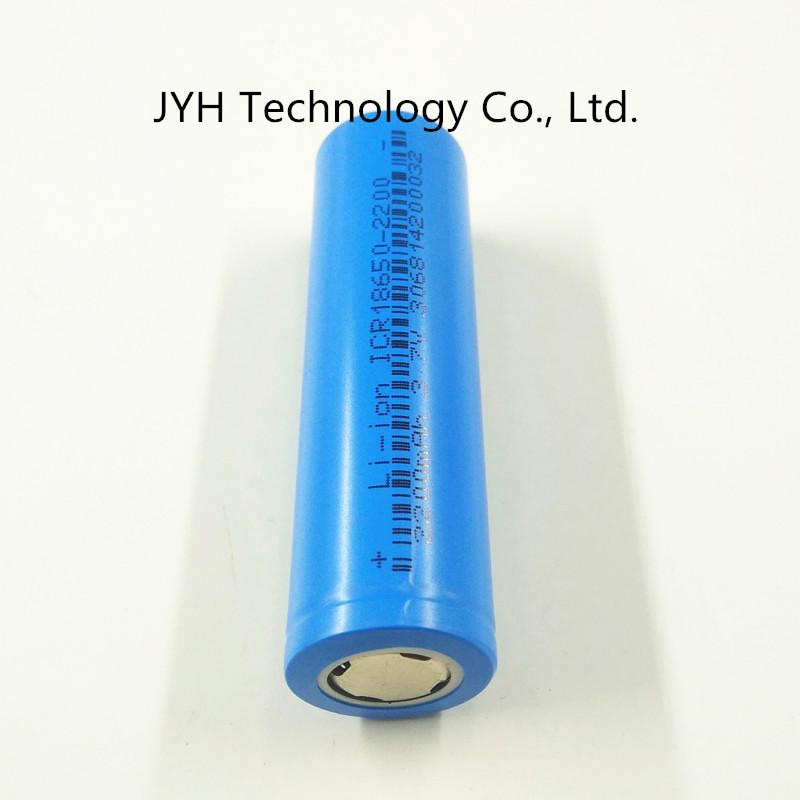

18650 Rechargeable Lithium Battery 3.7V 2200 mAh
Specification
| Nominal Voltage |
3.7V |
| Nominal Capacity |
2200mAh |
| Typical Capacity |
2200mAh after standard charge and standard discharge |
| Standard Charge |
Constant current at 1100mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 22mA |
| Fast Charge |
Constant current at 2200mA charge to 4.2V, then constant voltage at 4.2V charge till current decline to ≤ 22mA |
| Standard Discharge |
440mA to 2.75V |
| Fast Discharge |
2200mA to 2.75V |
| Maximum Continuous Charge Current |
2200mA |
| Maximum Continuous Discharge Current |
4400mA |
| Operating Temperature |
Charge 0°C to 45°C
Discharge -20°C to 60°C |
| Dimensions |
Diameter 18.5mm
Height 65.5mm |
| Typical Weight |
45g |
Products advantage
1, Real capacity
2, Cycle life more than 500 times
3, Rechargeable
4, UL test pass
Application
1, Electric shaver
2, Lantern
3, Other personal care products
ODM/OEM are welcomed. Our engineers will design the packs special for you as your orders!
Optional Li-ion assembly:
1. Nickel tabs on negative and positive
2. Leads and connectors
3. PCM, NTC
4. Customized series and parallel connect
